Genius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum Sweeper


Genius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum SweeperGenius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum SweeperGenius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum SweeperGenius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum SweeperGenius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum SweeperGenius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum SweeperGenius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum SweeperGenius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum Sweeper
Genius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum Sweeper 329
Genius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum SweeperGenius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum SweeperGenius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum SweeperGenius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum SweeperGenius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum SweeperGenius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum SweeperGenius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum Sweeper
Genius TK1404 IPC Eagle HYBRID 58" Dual Power Unleaded Gas / Battery Powered Vacuum Sweeper
Click or tap to enlarge
Your Price $27,235.00
GSA
Please Log In to See GSA Price




Product Description



Genius TK1404 IPC Eagle, HYBRID, Dual-Power Gas & Battery operated, Smart Tech Rider Vacuum Sweeper.



• Up to 113,000 sq. ft./hr.

• 58" cleaning path

• Climbs to 20% incline

• Genius technology with 3 programmable cleaning modes

HYBRID Dual Power: Battery and unleaded GAS operated, 8 Hrs Run Time.



TK1404 Vacuum Sweeper Includes:
Side Brooms, Main Cylindrical Brush, Front Lights and Flashing Beacon Light, Owner's Guide, and 1-Year Warranty on Parts & Paid Labor.

Charger and Batteries are sold separately, please click on the Additional Items tab above to view battery options or continue to the check out page to order batteries.


FEATURES:

  • HYBRID Battery and Unleaded GAS Operated
  • Up to 113,000 sq. ft./hr.
  • 58" Wide cleaning path with Dual Side Brooms/ Brushes.
  • 32" Cleaning path with main broom.
  • Climbs to 20% incline.
  • Genius technology with 3 programmable cleaning modes.
  • Propulsion, adjustable 0 to max 4Mph in forward and reverse
  • Total running time 8 hours. Fuel 5 Hrs + Battery 3 Hrs. running time.
  • Dirt/ Debris container 40 Gallon.
  • NDC (No Debris in Curve) Automatic brush movement while turning to eliminate debris passing between the side brush and the main brush.
  • Elevated power dirt/ debris dumping function.
  • SLS (Self Leveling System) automatic brush pressure control.
  • Dust micro filtration.
  • Dust flap for large debris collection.
  • Pre-programmed working settings.
  • Adjustable side brush rpm.
  • Easy to use control panel.
  • Great working visibility.
  • Effective discharge system due to separate controls for hopper raise and tilting.
  • Automatic stop (by pedal release) in working mode.
  • Maximum distance from discharge point and operator.
  • Main brush replacement without tools.

Genius TK1404 HYBRID Dual-Power Gas and Batteries Powered Vacuum Sweeper.

HYBRID GENIUS SWEEPERS:
These unique HYBRID sweepers utilize a combination of a battery electric power system and a relatively small Gas/ Propane- powered engine to produce electricity to run its motors. A variety of sizes to choose from to fit light industrial and warehouse applications.

IPC Eagle is one of the largest manufacturers of cleaning equipment in the world. This alliance provides for a broad range of innovative products to meet the needs and demands of the cleaning industry.


IPC Eagle Products’ Genius line
offers the best sweepers available on the market today.

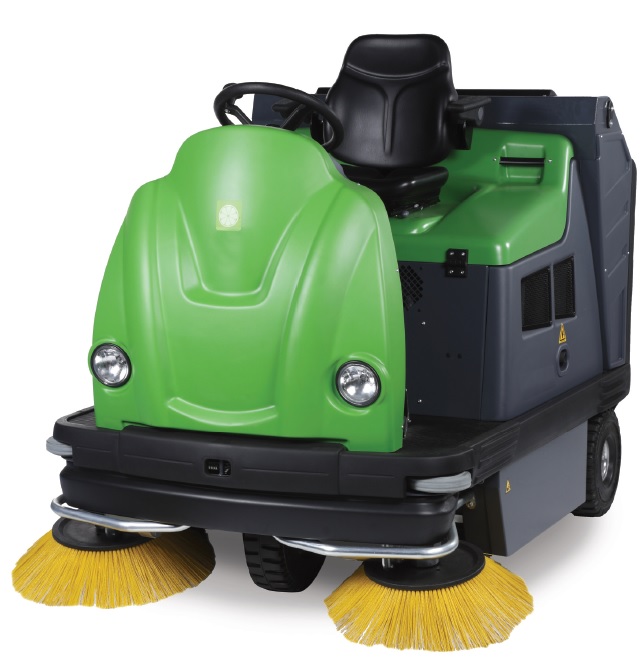

Genius TK1404 IPC Eagle Dual-Power GAS Powered Ride-On Vacuum Sweeper


With its smart technology, the
Genius TK1404 is the ideal Ride-On Sweeper for total and efficient cleaning of large surfaces.

• Variable side brush rpm adjustment

• Lift flap for bulky debris collection

• Rear wheel powerful traction

• No tool main brush replacement

• No tool filter replacement

• Low oil level automatic engine stop device

• Digital battery level indicator

• Digital hour counter

• Two visible beacons

• Diagnostic display

• Left-hand side brush

• Front lights system

• Overhead guard (optional)

See "Suggested Items" Tab For Batteries & Accessories.

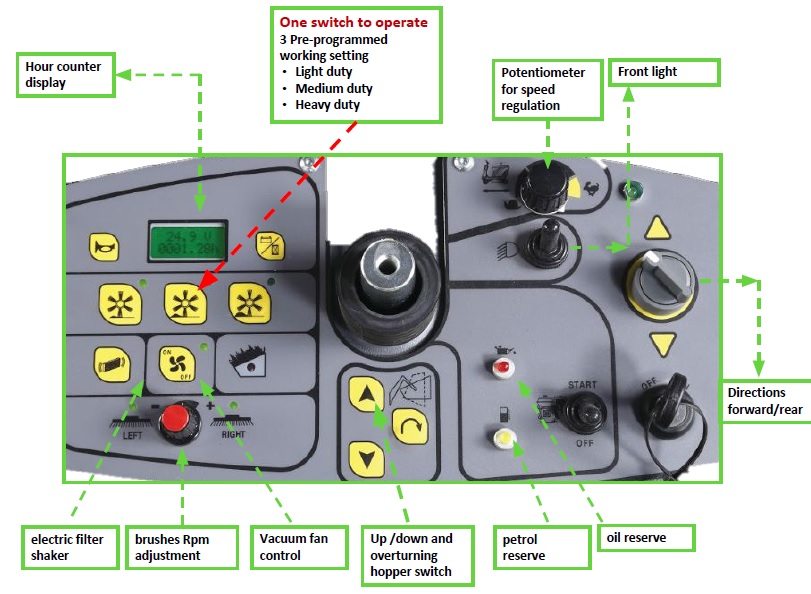

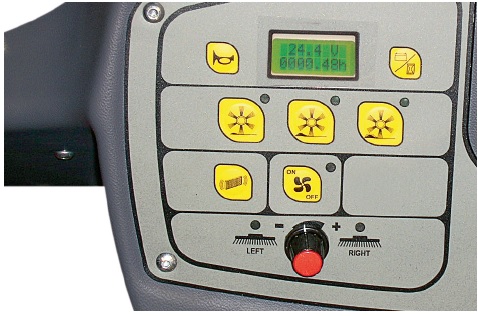

EASY TO USE CONTROL PANEL

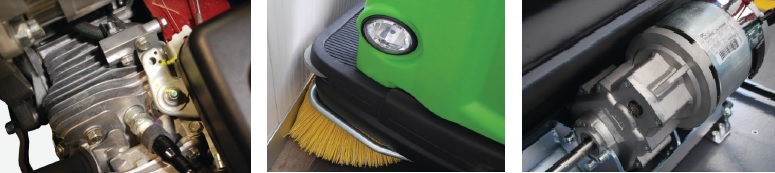

DURABLE COMPONENTS


Great quality motor equipped with protection systems and fully coated chassis and also protection on main brush and side brush


DUAL POWER

External Applications the machine work with engine motor

Internal Applications the machine work only in battery version

Benefits:

  • significant savings of fuel consumption
  • Very low exhaust emissions in full respect of the environment
  • Maximum noise reduction thanks to battery mode

DUST FILTER CONTROL


The vacuum system is divided in 2 separate compartments

Upon the basis of the frequency programmed, one compartment at a time will momentarily stop the vacuum and automatically clean on of the two filters while the machine continues to work by utilizing the other vacuum compartment

The automatic filter shaking (cleaning) program can be adjusted from intervals that go from every 1 minute up to every 9 minutes working time.

The filter is shaken 3 times for 5 seconds at intervals of 2 seconds.

The filer can always be shaken (even if set automatically) by the operator at any time

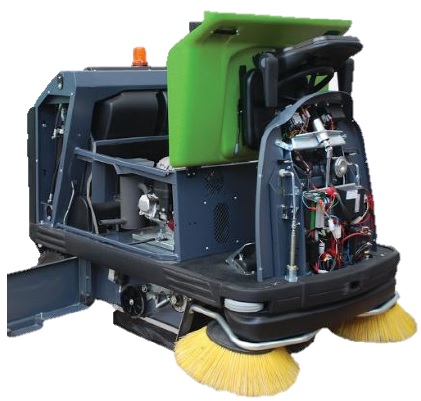

EASY ACCESS ALL MAIN COMPONENTS

The machine is very simple to maintain because of its very accessible components.


The dust filters are removable without tools

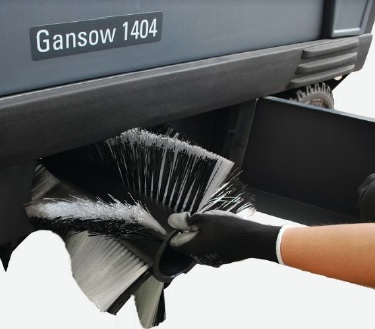

Main brush removable without tools

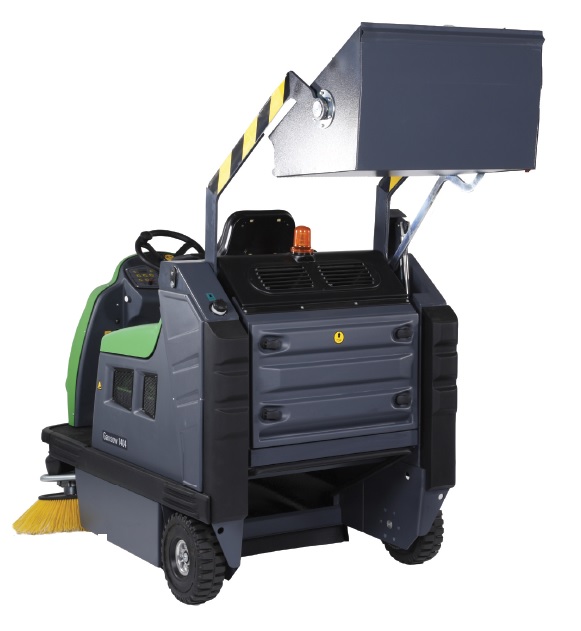

EASY AND SAFETY DUMP SYSTEM



Electro-hydraulic system- motor 400 W controlled by switch on the control panel. The hopper reaches as maximum dumping height

Safety distance between the operator and the discharging point to preserve the operator from any risk of injury


PATENTED DUAL POWER!
Dual Power is a hybrid system that uses a relatively small engine to produce electricity to run its motors. The excess electricity is stored in batteries to give more power when needed making it the most pwoerful sweeper in its class.
The dual power system also allows the sweeper to be switched to its battery power only, which provides up to an additional 3 hours of operation.

VERY EASY TO USE!
With the push of a button the machine automatically adjusts the sweeper speed, broom pressure and the frequency of filter shaking. Three different sweeping modes can be customized depending on surface and conditions.

PATENTED SELF-LEVELING AND SELF-ADJUSTING MAIN BRUSH!The system allows the brush to immediately and constantly follow all types of surfaces, and to self-adjust until the brush is completely worn out.

PATENTED SELF-CLEANING DUST FILTERS—THERE’S NO NEED TO STOP!
The dual 3 filters are periodically cleaned automatically without interrupting the sweeping mode. There are two separate vacuum chambers that take turns shutting off to shake while vacuuming is continuously maintained.

PATENTED AUTOMATIC SIDE BRUSH MOVEMENT—SWEEPS PERFECTLY WHILE TURNING!Automatic side brush movement ensures excellent sweeping results. The outside brush automatically moves inward while turning, providing consistent sweeping and reaching areas that other sweepers miss.



2 Self Cleaning Filter System:
The filter are periodically cleaned automatically without interrupting the sweeping mode.

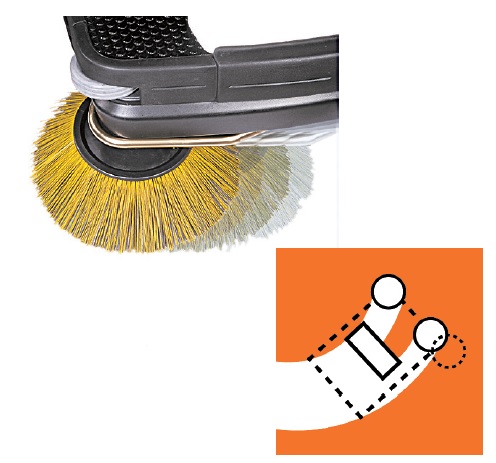

NDC (No Debris in Curve) Automatic Brush Movement while turning:
-When turning the side brush moves inwards automatically.
-The system avoids uncollected debris between the side brush and the main brush.



Pre-Programmed Working Settings:
Three independent programs allow best settings for all types of applications. Filter shaker can be operated at any time. Each program can be fully personalized.

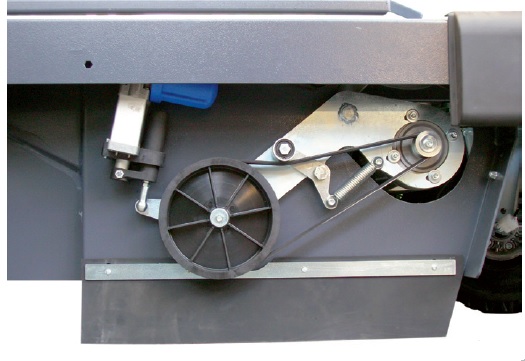

SLS (Self Leveling System) Automatic Brush Pressure Control:
System that adapts immediately the brush due to a special shock absorber. The actuator moves only in case brush adapting requirements are higher.
The system allows the brush:
-To immediately and constantly follow all types of surfaces
-To self adjust brush pressure until the brush is completely worn out.|
No need to check brush wear as brush replacement is indicated automatically on control panel display.


SPECIFICATIONS:
MAXIMUM PRODUCTIVITY (1-2 brushes nonstop): 113,000 Square Feet/Hr
SWEEPING WIDTH
(with two-side brushes):
58 inch
SWEEPING WIDTH
(with main brush only):
32 inch
WASTE HOPPER VOLUME: 5.3 Cubic Feet
FILTER SURFACE: 65 Square Feet
MAXIMUM CLIMBING GRADE: 20%
MAXIMUM SPEED: 4.5 mph
MAXIMUM POWER: 6.5 HP
BATTERY MAX CAPACITY: 24 / 325 V/AH
MAXIMUM DUMPING HEIGHT (high dump version): 56 inch
MAXIMUM RUNNING TIME
(FUEL):
5 HRS
MAXIMUM RUNNING TIME
(BATTERY):
3 HRS
MAXIMUM RUNNING TIME
(DUAL POWER):
5 + 3 = 8 HRS
DIMENSIONS: 63 X 42.5 X 50.5 inch
WEIGHT
(empty without batteries):
1129 Lbs



Click below for PDF Guides:






Specifications

SPECIFICATIONS:
MAXIMUM PRODUCTIVITY (1-2 brushes nonstop): 113,000 Square Feet/Hr
SWEEPING WIDTH
(with two-side brushes):
58 inch
SWEEPING WIDTH
(with main brush only):
32 inch
WASTE HOPPER VOLUME: 5.3 Cubic Feet
FILTER SURFACE: 65 Square Feet
MAXIMUM CLIMBING GRADE: 20%
MAXIMUM SPEED: 4.5 mph
MAXIMUM POWER: 6.5 HP
BATTERY MAX CAPACITY: 24 / 325 V/AH
MAXIMUM DUMPING HEIGHT (high dump version): 56 inch
MAXIMUM RUNNING TIME
(FUEL):
5 HRS
MAXIMUM RUNNING TIME
(BATTERY):
3 HRS
MAXIMUM RUNNING TIME
(DUAL POWER):
5 + 3 = 8 HRS
DIMENSIONS: 63 X 42.5 X 50.5 inch
WEIGHT
(empty without batteries):
1129 Lbs
