Duplex Escalator Cleaning Machine


Duplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning Machine
Escalator Cleaning Machine
Mouse over to zoom
Duplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning Machine
Duplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning MachineDuplex Escalator Cleaning Machine
Click or tap to enlarge
Your Price $4,695.25
GSA
Please Log In to See GSA Price
  • Ship NotesIN STOCK! Fast Free Shipping.




Product Description

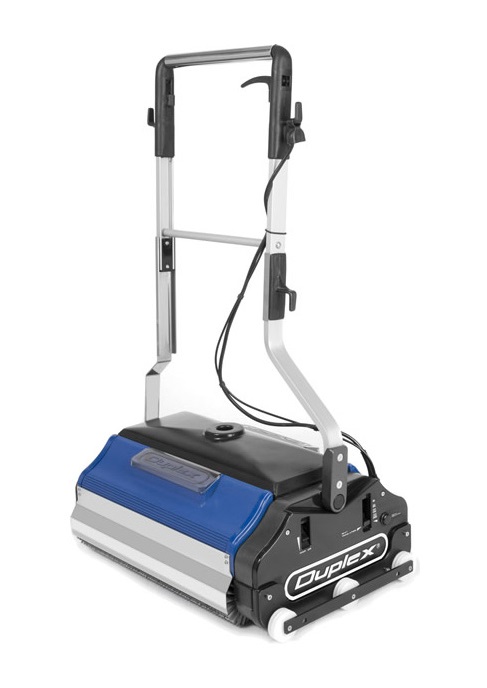

Duplex Escalator Cleaning Machine & Moving Walkways.



The Duplex Escalator clean all Escalators and moving Walkways.


Cleans quickly, easily and economically.
The machines are designed with a patented guide rail system which keeps them locked to the path of the escalator. The guide system eliminates side swaying of the cleaner ensuring a consistent clean




The Duplex Escalator Cleaning Machine cleans all escalators quickly, easily and economically. The escalator cleaning machine is designed with a patented guide rail system which keeps them locked to the path of the escalator. The guide system eliminates side swaying of the cleaner ensuring a consistent clean. The offset brushes allows the Duplex Escalator to clean right to the edge of the escalator. The machine is reversed and the process repeated on the opposite side. The Duplex Escalator Cleaning Machine is extremely easy to transport between storage and escalators



KEY FEATURES:

  • Dry Vacuum Cleaning mode picks up excess dirt.
  • Wet low moisture deep scrubbing mode cleans escalator and moving walkways.
  • Cleans right to the edge
  • Patent guide system locks machine to escalator.
  • long brushes penetrate to the base of the escalator floor.
  • leaving your escalator dry sparkling clean.



The Escalator Cleaning Machine System includes the DP420 DUPLEX Cleaning Machine, Escalator Trolley, Top lid, Water tanks, Tread guide, and Special Escalator Cleaning Brushes.




FEATURES:

  • 14" cleaning width

  • 1.6 Gallon Solution Tank

  • 4 Gallon Recovery Tank

  • Powerful 1000W 1.3 HP Brush Motor

  • 780 RPM Brush Speed

  • Single handed operation

  • Cleans ALL Escalator Types

  • Exceptional cleaning power

  • Low Water Usage

  • Dry Vacuum mode picks up excess dirt

  • Wet low moisture scrub mode cleans escalator and moving walkways

  • The patented homing guidance base, with its grooved wheels, keeps the machine on track in the working position.
  • This is the only dual action machine with a washing cycle action which can be reversed simply by inverting the position of the handle.
  • The Duplex Escalator Base is supplied with a compact trolley for easy transport.
  • Lightweight and easy to handle.

DUPLEX, PERFECT FOR ESCALATOR CLEANING






 BEFORE AND AFTER

Comparison of washing and cleaning results between a dirty step and one washed with the Duplex Escalator Cleaning Machine.


How the Duplex Escalator Cleaning Machine Works

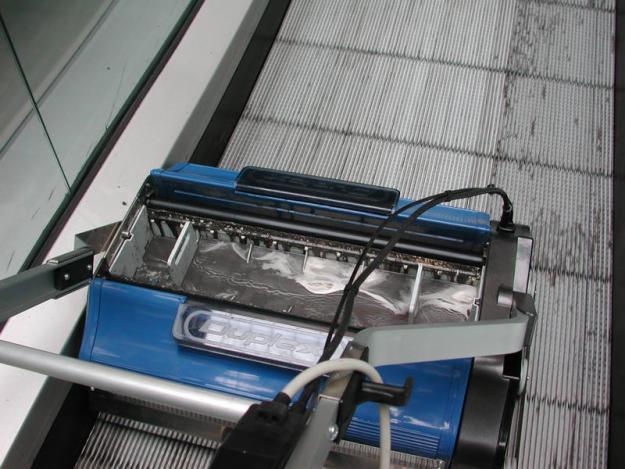

To start the machine simply lower the handle slightly. Pull the trigger to release water and detergent. Cylindrical brushes flick dirt onto rotating belts which carry it to a central recovery tank. This tank is easily removed for emptying. To stop the machine simply raise the handle back to the upright position.



Unique Features:

Dual-direction: the original design and versatility of the Duplex allows bi-directional cleaning. With the brushes working to the edge on one side, a fluid movement to change handle position allows cleaning up to every edge without having to lift or turn the machine. The machine includes two large contra-rotating cylindrical brushes, Liquid distribution for each brush, Double dirt recovery system, Removable recovery tank, Automatic electrical protection system







The Duplex Escalator Cleaning Machine is the machine of choice for the smaller facility with a small number of escalators or moving walkways to clean.

This model offers incredible value for money for routine maintenance cleaning of escalators and moving walkers whilst having the added benefit, with a simple change of brushes, tanks and cover transforming it into a standard Duplex 420 floor cleaning machine.

This model has a 14" cleaning width and unique patented guide rails making it suitable for regular maintenance cleaning of escalators and moving walkers.

The patented guide rail system perfectly aligns into the treads of the escalator or moving walkers thus ensuring the safe operation of the machine whilst in motion.

Cleaning escalator is a two stage process, firstly the machine is connected to a tub vacuum cleaner for a ‘dry sweep’ to remove dust and that is followed by a ‘damp wash’ as the machine sprays a fine mist of water and cleaning fluid onto the treads before scrubbing the escalator’s treads using special brushes.

The Duplex Escalator Cleaning Machine uses minimal water which is a key requirement of escalator and moving walkers manufacturers whilst also being environmentally friendly.

The machine can also be used to clean the profiled lead on/lead off areas at the top and bottom of the escalator.

The brushes have been designed in consultation with leading escalator manufacturers and reach fully into the treads where dust and grime can accumulate.

The Duplex Escalator Cleaning Machine cleans right up to the edge thus ensuring that escalators and moving walkers can be cleaned in just a few passes.



Patented Escalator Guide Rail System

The Duplex Escalator Cleaning Machine is fitted with a patented guide rail system to allow safe operation whilst the escalator is in motion. The brushes, designed after consultation with major escalator manufacturers, reach fully into the tracks, cleaning where dirt accumulates, without damaging the surface.

Long Escalator Brushes

Fit the special brushes provided, with their equidistant bristles to reach right down into the tracks forming the stair tread of the escalator steps.



The pitch of these tracks or channels may vary from manufacturer to manufacturer. Optional OTIS/KONE – THYSSEN – SCHINDLER/MITSUBISHI brushes are available upon request.



The brushes of the DUPLEX ESCALATOR machine are made from a combination of special plastic materials with no abrasive power, ensuring that no damage is caused to the metal steps of escalators or moving walkways

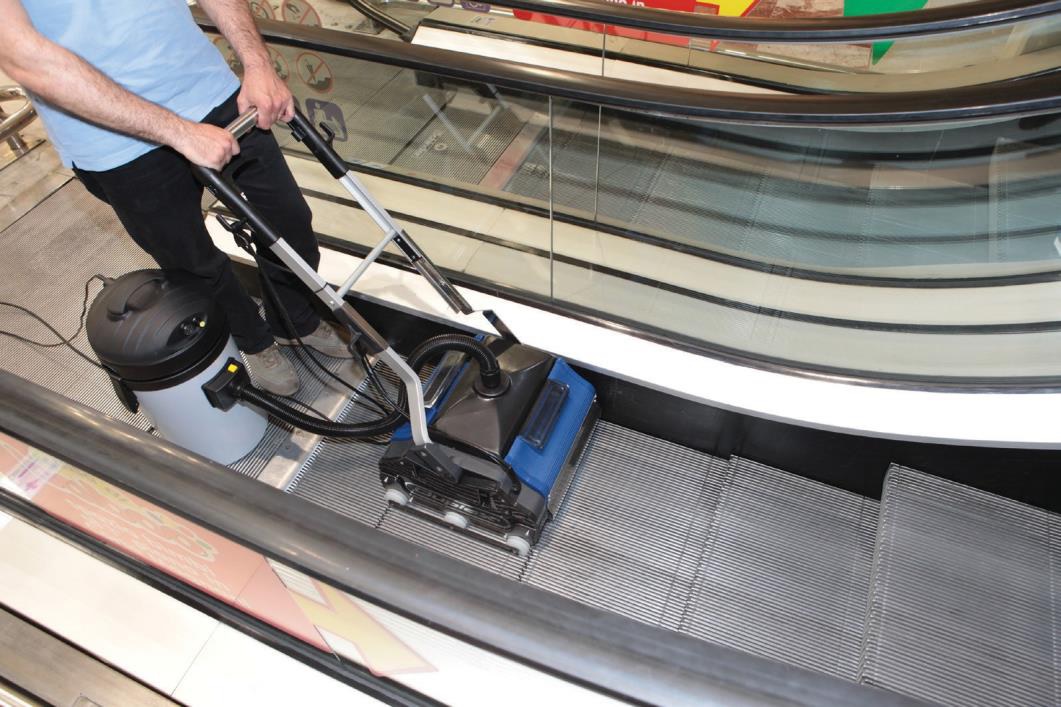

*Image illustrates optional wet/dry vacuum.

Wet and Dry Cleaning Modes:

The Duplex Escalator Cleaner work quickly in two modes.
In Dry Mode the dust accumulated in treads is swept away by the high speed brushes.
In Wet Mode a low moistuire scrubbing with minimal water and detergent is used to bring the finish back to escalators within two or three passes.



In sweeping mode the Duplex Escalator Cleaning Machine thoroughly removes the excess dirt from the escalator tread. A vacuum is attached above the central recovery tank and removes the waste. Once this cycle is complete the wet scrub mode is started by squeezing the trigger. Dual large capacity clean solution tanks then dispense detergent evenly along the full length of both brushes. The twin recovery belts simultaneously lift dirt solution from the brushes to a central recovery tank. This process deep cleans the escalator tread in minimal time.

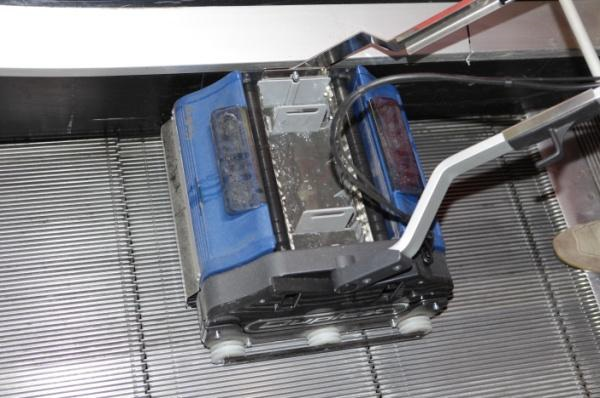

Clean to The Edge

The Duplex Escalator is able to clean to the edge on both sides of an escalator. After an initial deep clean all following cleans become quicker and easier. Both up and down escalators can be cleaned in just a few passes, so there is no need to close the escalators for long periods or clean outside of operating hours.


Die Cast Aluminum Case

Duplex Escalator is made with a die cast aluminum case and frame, and the internal gears run on stainless steel sealed bearings. The motor is single phase induction and is rated for continuous running. It is sealed against steam and chemicals used during the cleaning process. The synthetic rubber pick up belts and rollers are also chemical resistant.


Duplex Escalator thoroughly removes the excess dirt from the escalator tread. The twin recovery belts simultaneously lift dirt solution from the brushes to a central recovery tank. This process deep cleans the escalator tread in minimal time.



Specifications

SPECIFICATIONS                                DUPLEX ESCALATOR

Cleaning Path

14"

Solution Tank

1.6 Gal

Recover Capacity

1 Gal

Brush Speed

780 RPM

Brush Pressure

57 lbs.

Brush Motor 1,000 W / 1.3 hp
Power Cord 35 ft.
Weight 57 lbs.

Working Capacity

6,160 sq.ft./hr.

Noise Level

64 dBA
