CT231BT100R

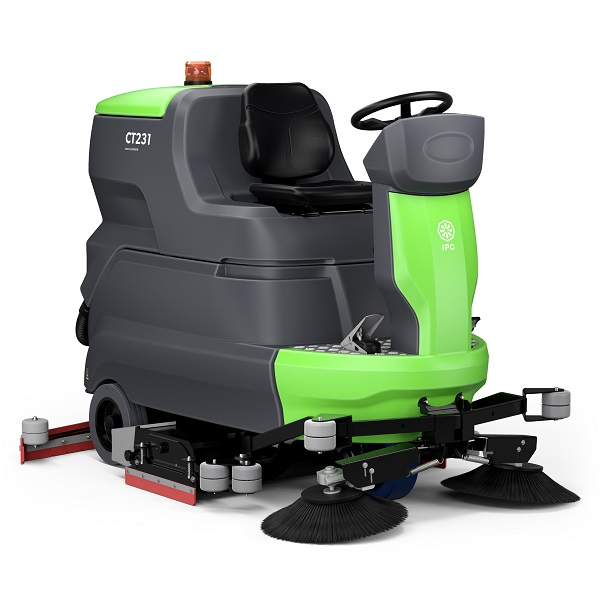

IPC Eagle Ride-On Cylindrical Auto Scrubber and Sweeper in One Machine.
CT231BT100R
has
a 47-inch Total Sweeping width with the two side brushes, 40-inch Scrubbing
Path, Scrub and Sweep the floors in one pass.
The
best machine to clean and maintain warehouses and aircraft hangar floors.
This
advanced Rider Floor Scrubber is equipped standard with per-sweep brooms/brushes
and twin cylindrical scrubbing brushes, this unique combination enables the
operator to conduct different cleaning tasks in one pass! This machine will
sweep the floors, deep scrub and leave the floors clean and dry in one pass.
The CT231BT100R Ride On Scrubber Includes:
Pad Driver or Brush,
Cylindrical
Nylon Brushes, Pre-Sweep Side Brushes/Brooms, Sides and Rear squeegee Assembly,
Flashing Beacon Light, Back up Alarm, Horn, Parts Manual and Operator Manual.
Batteries and
Charger are sold separately
SWEEP,
SCRUB AND CLEAN THE FLOORS IN ONE PASS!
Features
-
Center
Two Main Cylindrical Scrub Brushes
-
Pre-Sweep
Two Brooms / Brushes System Standard
-
Recovery Tank Capacity 59 Gallons
-
Solution Tank Capacity 54 Gallons
-
47" Inch
Sweeping Width
-
40"
Inch Scrubbing Width
-
50" Inch Squeegee Suction Width
-
Productivity
81,000 Sq.Ft. AHR.
-
Extensive 4.5 Hour Battery Run Time
-
Automatic brush
connection
-
Squeegee lift
automatically in reverse
-
Curved squeegee with
breakaway mechanism
-
Controlled solution
flow
-
Three programmable
modes
-
Amber Flashing Safety
Beacon Light
-
Key to restrict
unauthorized operation
-
Emergency safety
shutoff button
-
Operator Seat
Pressure safety shutoff switch
-
Horn
-
Alarm sound in
Reverse
-
LCD Display, with
Diagnostics and fault notification.
-
Self-leveling brush
system.
-
36Volt Power System

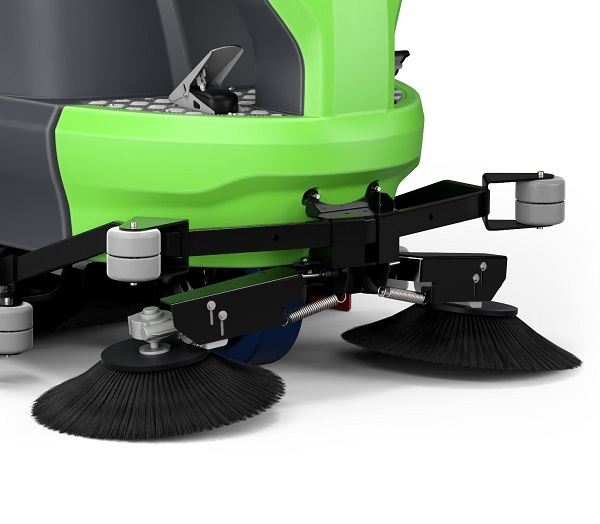

Cylindrical
Brushes and Pre-Sweep Side Brooms
The
CT231BT100R is equipped with Pre-Sweep Side Brushes/Brooms System, Sweeping and
Scrubbing in One Pass. Dual counter-rotating Side Brushes/Brooms for Pre-Sweep
and Dual Cylindrical Brushes to sweep, scrub and dry. Ideal for warehouse floors
and grouted tile floors. Picks up litter and debris in its 4- gallon Stainless
Steel Hopper.
The
CT231 is the largest scrubber in the IPC family and is ideal for efficiently
cleaning logistics, manufacturing, and large specialty facilities such as
shopping malls and sports arenas. The user-friendly interface and updated
features allow operators to simplify training, while making daily operation and
maintenance easy and intuitive.
HIGH
PRODUCTIVITY
The
large tanks and the longer runtime make the CT231 highly productive and
extremely versatile, thus increasing both efficiency and uptime.
|
-
Innovative
cylinder brush variant, 3 in 1: sweep, wash and dry in a single
passage, collecting the debris in an under frame removable canister.
|
|
EXCELLENT
CLEANING PERFORMANCE
The
CT231 ride-on floor scrubber combines adjustable Pre-Set program, with a
specific V-shape squeegee and an automatic self-leveling brush system to clean
hard and soft floor surfaces. The
front sides brooms sweep the dust and debris into a special dedicated hopper in
combination to the twin cylindrical brushes power that deep scrub and clean also
uneven floors surface with cleaning solution while the squeegee in the back
leaves the floors dry and clean.
Three
Preset Programs
3
preset scrubbing systems; light, medium, and heavy-duty cleaning.
Simple
to Operate - Simple to use and easy to operate, all of the controls are right at
your fingertips.
Auto
Brush Shut-off - The brush will stop automatically when the drive is turned off.
Low
Noise Levels - The soundproofing system guarantees low noise levels.
Long
Life Squeegee - Blades can be used in all four directions before requiring
replacement.
AFS
Anti Foam System
The
Anti Foam System uses the airflow in the tank to push the foam away from the
vacuum inlet to eliminate the flooding of the vacuum.
Self
Leveling System
Uniform
scrubbing guaranteed by the spring-activated floating head, which adapts
instantly to even the most irregular surfaces.
PERFORMANCE
The
Cleantime utilizes a unique self-leveling brush head designed to automatically
adjust to provide excellent results on the most uneven surfaces. Couple this
with its proprietary ULTRA DRY squeegee system and there is no other scrubber
that will provide the scrubbing and drying performance of the Cleantime.
Drying
Performance
No
other squeegee system in the world can provide the drying performance of this
Rider.
Automatic
Solution Flow:
The
solution flow varies according to speed. The quantity can also be regulated from
the control panel. Flow of the solution stops when the drive is turned off.
The
CT231 High Productivity
Featuring
a large solution tank and an extensive run time, the CT231 features high
productivity with low cost maintenance. Designed for commercial as well as
industrial applications, the CT231 Rider Scrubber utilizes a 36 volt battery
system which offering long run times for high-production large-area cleaning.
High
Performance
The
CT231 delivers amazing performance thanks to advanced technical solutions developed with continuous improvement in mind. The
CT231 is equipped with two exclusive new systems. CRF (Centre Flow System) distributes the cleaning solution to the
center of the brush so that the entire brush surface is effective, thus saving water and detergent.
SAS (Self Adapting System) automatically adjusts brush level to maintain perfect contact with the floor and make cleaning even more effective. Cleaning action covers the entire floor too, thanks to a parabolic squeegee that dries effectively even around bends. The squeegee holder performs a special movement that reaches the areas left wet by conventional systems.

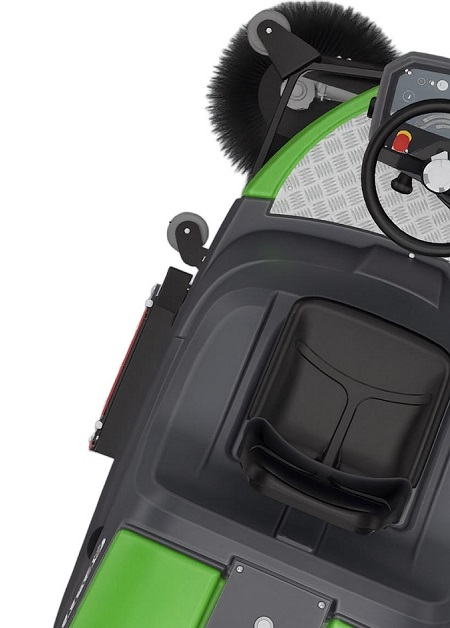

Ergonomics and
Maneuverability
IPC Gansow’s research covers all aspects of cleaning, especially the working conditions of operators. The
CT231 is therefore equipped with a handlebar that can be adjusted on the move to give maximum maneuverability. A rounded front ensures excellent visibility. Operation is particularly easy thanks to a simple but complete control panel incorporating the squeegee control lever and colored LEDs that display the battery charge level.
Intuitive
and Easy
Maintenance
The
CT231 is designed for maximum efficiency with minimum hassle. The user-friendly
interface allows operators to simplify training. The smart machine design has
been studied to keep everything under control for easy operation and
maintenance. All components are easily accessible; brushes can be changed without the use of tools, and squeegee blades can be rotated to four positions before they require replacement. All parts subject to knocks are made from highly impact resistant materials or are suitably protected and waterproofed.
| ORDINARY
MAINTENANCE
simply lifting the recovery tank, the operator has easy
access to the battery compartments for the daily charging process.
|
EXTRAORDINARY
MAINTENANCE
By lifting the recovery and solution tanks the operator has
access to all parts to simplify service maintenance.
|
|
SPECIFICATIONS
CT231BT100R |
| Max
Productivity |
80,729
sq. ft/hr |
| Cleaning
Path |
47
Inches |
| Max
Running Time Squeegee Width |
300
Minutes 50 Inches |
| Voltage
Number of Sweeper Brushes |
36
V 2 Brushes |
| Brush
Motor Power |
1300
Watt |
| Brush
Speed Traction Drive Motor |
720
RPM 1.5 HP |
| Traction
System Motor |
Driven |
| Max
Speed |
5.6
MPH |
| Suction
Motor |
1.3
HP |
| Solution
Tank Capacity |
54
Gallons |
| Recovery
Tank Capacity |
59
Gallons |
| Battery
(Optional) |
6
X 6V/325Ah |
| Power
Supply Voltage |
36V |
| Dimensions
(LXWXH) |
77X46X58
Inches |
| Weight
(without Batteries) |
842
LBS |
