Cleantime CT110BT70 IPC Eagle, 28-inch Ride On Scrubber, Battery Operated.
Ideal for large spaces, the CT 110 is a ride-on scrubber-dryer designed for cleaning industrial floors, warehouses, workshops and shopping malls.
With the possibility to have up to 4 hours continuous operation thanks to the large battery compartment, a wide cleaning path 28", and a dispensing system designed to save water and detergent, the CT 110 optimizes cleaning work to the maximum, making it practical, fast and effective.
- Powerful Motor- 16% Climbing angle
- Yellow Touch Point for an easy daily maintenance
- Reliability- Easy Electronic Concept
- Easy to Service- Full Accsss Internal Parts
- Great Maneuverability- 75 cm minimal turning radius
The CT110BT70 Ride On Scrubber Includes:
Charger, Pad Driver/ pad holders, Squeegee Assembly, Owner's Guide, and 1-Year Warranty on Parts & Paid Labor.
Batteries and On Board Charger are sold separately, please click on the Additional Items tab above to view battery options or continue to the check out page to order batteries.
FEATURES:
- 29 Gallon Solution Tank Capacity
- 32 Gallon Recovery Tank Capacity
- 2-Disc / Brush Deck, 2 x 14 inch size.
- Brush Motors: 2 Motors 0.4HP each
- Suction Squeegee width 40 inch
- Exclusive Squeegee System
- 210 RPM Brush Speed
- Self-leveling Brush System
- 3.9 Mph Max Speed
- Non-Marking solid Tires
- Automatic stop (by pedal release) in working mode
- Optional "Chem-Dose" System
- Anti Foam System
- TRACTION DRIVE self-propelled
- Drive Motor 0.8 HP Motor
- Flashing Safety Beacon Light
- 24Volt Electric System, Battery level indicator
- 3 Hours Continuous Run Time on single charge.
- (CFS) Central Flow System solution distribution from brush center
- Great Manuverability with its optimum weight distribution
- Squeegee blades lift in reverse
- Designed to assure minimum noise level

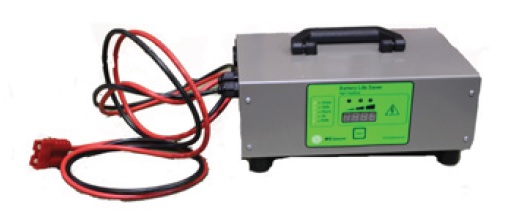

- Includes Charger 25Amps, Pad Driver/ Pad holders, Squeegee Assembly, Operating Manual and Parts list.
The CT110BT70 with TRACTION DRIVE is an incredibly small rider scrubber but with a 30 gallon tank offers much higher productivity than other rider scrubbers in its range. Designed to offer high productivity and performance with very little training.
Batteries, and Brushes not included. Please click on the Related Items tab above to see accessory options.
HIGH PERFORMANCE |
DURABILTY |
|
CFS (Center Flow System) Solution distribution from brush center. |
|
Tanks and surrounding body in high density polyethylene. |
|
Pre-programmed work settings. |
|
Oil bath reduction gear box. |
|
Exclusive squeegee system assures high performance at low cost. |
|
Brush head designed to absorb harsh impact. |
|
High quality / high performance vacuum motor. |
|
Squeegee system designed to absorb harsh impact. |
|
SLS (Self Levelling System) automatic brush pressure control. |
|
Panel control switches protected against water and humidity. |
|
|
|
|
ERGONOMICS USER FRIENDLY |
LOW MAINTENANCE COSTS |
|
Great maneuverability due to optimum weigh distribution. |
|
Inlet and outlet filters for maximum solution tank protection. |
|
Great working visibility. |
|
AFS (Anti Foam System) and shut off sensor protect vacuum. |
|
Automatic stop (by command release) in working mode. |
|
Automatic squeegee lift in reverse. |
|
Designed to assure Minimum noise levels. |
|
Spin-on spin-off brush/pad driver (single brush only). |
|
Easy to use control panel |
|
Squeegee blade can be used on 4 sides before replacement. |
|
Battery level indicator |
|
Squeegee assembly and blade replacement without tools. |
|
Recovery tank discharge hose at maximum height. |
|
|
|
Recovery tank can be tilted for ease of cleaning. |
|
|
|
On board charger can be easily installed now or later. |
|
|
|
Flashing beacon. |
|
|
SLS-Self Leveling System.
Automatic brush pressure control, Constant brush pressure with immediate spring reaction, avoids also
excessive brush and actuator wear.
- The brush pressure with self-leveling and self-adjusting head, allows a perfect fit between the brush and floor
- System available as mechanical, electro mechanical or electronic according to machine models
Exclusive squeegee system assures high performance
Incomparable drying results even on the most difficult surfaces due to a very unique design.
Save Water and Chemicals:
STANDARD - Solution flow through basic adjustment
AUTOMATIC - Solution flow proportional upon machine speed
ECONOMY - Solution always at minimum adjustment
CHEM-DOSE (opt)- Automatic chemical dispensing system.
Large tank capacity in minimum external space
29 Gallon solution tank and 32 gallon recovery tank capacity makes this model very unique in its
category. Recovery and solution tank can be tilted to clean and maintain Easy to rinse and clean with
smooth internal finishes.
Very comfortable riding position due to an adjustable steering wheel
1. The control panel is easy and intuitive to use and program.
2. When the recovery tank is full, the left LED lights up and the vacuum motor turns off. The right LED indicates when the solution tank has reached the reserve and there is enough solution for about two minutes of cleaning.
Recovery and solution tank can be tilted to clean and maintain.
Easy to rinse and clean with smooth internal finishes.
Auto start and stop on all functions.
- Brushes
- Solution
- Vacuum
- Traction

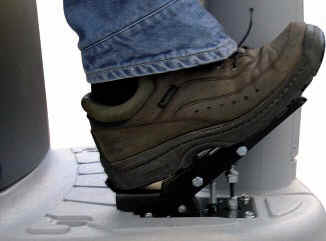

All functions stop and start upon traction pedal activation.
Avoids having to stop and start the machine.
CT110BT70 Ride On Scrubber |
Technical Data: |
BT70 |
Drive System: |
Traction |
Scrubbing Width: |
28"/700mm |
Squeegee width: |
40"/1010mm |
Number of Brushes |
2 (disc) |
Solution tank Capacity: |
29 Gal/110 Ltr |
Recovery tank capacity: |
32 Gal/120 Ltr |
Battery Power Supply: |
24V,105/145AH |
Empty weight (w/o batt) |
471 lbs/214 Kg |
Length: |
49"/1230mm |
Width: |
30"/770mm |
Height: |
50"/1270 mm |
Max Speed: |
3.9mph/6.5kmh |
|
Click Below for PDF Guides
