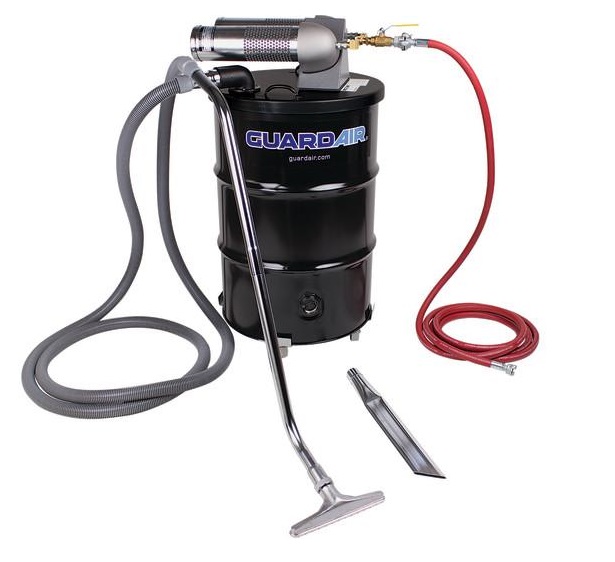

N552BC GuardAir 55 Gallon Pneumatic B-VENTURI Vacuum Cleaner With 2" Vac Hose & Tools

Generating 63% more vacuum flow than single venturi units, Guardair 55 Gallon Dual Venturi Drum Vacuums pick up the heaviest of chips, dust, debris, liquids or sludge, quickly and efficiently.
Powered by compressed air, always dependable and trouble free with no motors or moving parts to wear out, these units generate exceptional vacuum lift and vacuum flow. Equipped with dual B type venturis.
- DUAL venturi vacuum generating head with exhaust silencer
- Standard cartridge filter
- Heavy-duty, 19 gauge, 55 gallon steel drum
- Detachable drum dolly with four, 3" steel swivel casters
Includes: Standard Catridge Filter, Air Hose 3/4" x 20', 2" x 20' Standard Duty Vacuum Hose, 24" Metal Crevice Tool, 4' Aluminum Wand With 12" Wide Metal Wet/Dry Floor Tool.
Warranty: 1 Year Parts and Labor.

Features:
- 55 Gallon Pneumatic Vacuum
- DUAL B Venturi With 2" Vacuum Hose and Tools
- 1/2" Air Inlet FNPT
- 24 Hp Min. Compressor Required
- 163 CFM Vacuum Flow
- 163 Water Vacuum Lift
- 19 Steel Drum Gauge
- 107.9 Lbs.
- DUAL venturi vacuum generating head with exhaust silencer
- Standard cartridge filter
- Heavy-duty, 19 gauge, 55 gallon steel drum
- Detachable drum dolly with four, 3" steel swivel casters
- Air shutoff valve with 1/2" FNPT inlet; equipped with 1/2" NPT connector.
- 3/4" x 20' air supply hose with Universal Couplings
- 20' standard-duty vinyl vacuum hose
- Detachable, 12" wide metal wet/dry floor tool with 4' steel wand
- 24" metal crevice tool

RUGGED, STEEL CONSTRUCTION

STANDARD SHOP COMPRESSED AIR

EXTRA SILENT OPTION
55 GALLON COMPLETE VACUUM TECHINICAL SPECIFICATIONS: |
|
N552BC |
N552BCX |
Air Inlet FNPT: |
3/4"
|
3/4"
|
Min. Compressor Required: |
24 Hp |
24 Hp |
Vacuum Flow: |
163 CFM |
163 CFM |
Vacuum Lift in (H2O): |
163 |
163 |
Steel Drum Gauge: |
19 |
19 |
Dimensions: |
48" X 27.7" X 24.5" |
48" X 27.7" X 24.5" |
Weight: |
107.9 Lbs |
103.7 Lbs |
