Large solution capacity in a minimum external space |
 |
 |
Extensive running time, large battery compartment |
 |
Solution Control with automatic stop. |
 |
Multi System use, Traditional or Micro Scrub. |
 |
Brush Control with delayed automatic stop. |
|
MULTI SYSTEM USE |
| Traditional |
Or |

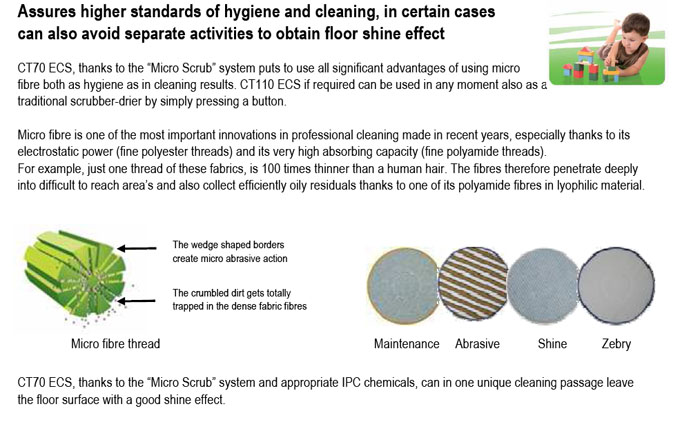

Micro Scrub |
 |
|
 |
| Micro fiber pads (600 rpm / 3.5 oz per minute) 1.6 gallons per hour. |
|
Traditional brushes or pads (200 rpm / .3 – .4 gallons per minute) 18-24 gallons per hour |
 |
|
 |
| Pad/brush pressure adjustment with led display. |
|
Spin on, spin off pad |
|
|
|
 |
|
|
 |
 |
 |
|
|
|
|
| High Performance |
Ergonomics user friendly |
Low Maintenance costs |
 |
CFS (Center Flow System) Solution distribution from brush center.
|
 |
Great maneuverability due to optimum weigh distribution. |
 |

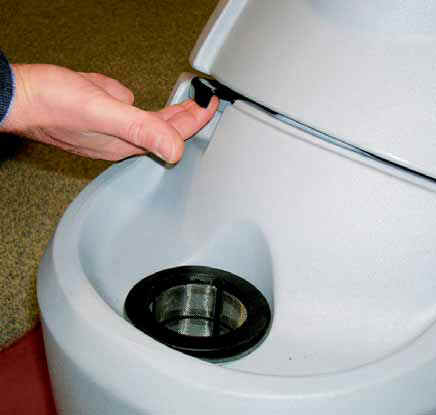

Inlet and outlet filters for maximum solution tank protection. |
 |
CWS (Constant Weight System) Ensures maximum scrubbing results. |
 |
Great working visibility. |
 |
AFS (Anti Foam System) and shut off sensor protect vacuum. |
 |
Exclusive squeegee system assures high performance at low cost. |
 |
Designed to assure Minimum noise levels. |
 |
Spin-on spin-off brush/pad driver (single brush only). |
 |
High quality / high performance vacuum motor. |
 |
Easy to use control panel. |
 |
Squeegee blade can be used on 4 sides before replacement. |
 |
Battery level indicator. |
 |
Recovery tank discharge hose at maximum height. |
 |
Squeegee assembly and blade replacement without tools. |
 |
Recovery tank can be tilted for ease of cleaning. |
 |
On board charger comes standard |
 |
Easy access to internal compartments. |
| Durability |
|
|
|
|
|
 |
Tanks and surrounding body in high density polyethylene. |

|
 |
Oil bath reduction gear box. |
 |
Brush head designed to absorb harsh impact. |
 |
Squeegee system designed to absorb harsh impact. |

|

|
 |
Panel control switches protected against water and humidity. |
|
|
|
|
|

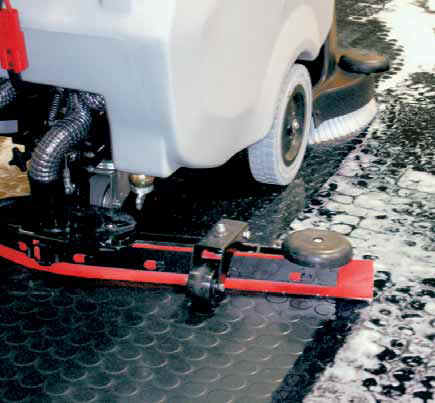

Exclusive squeegee system assures high performance Incomparable drying results even on the most difficult surfaces due to a very unique design. |

Large tank capacity in minimum external space 10/13 gallon (40-45 liter) capacity makes this model very unique in its category. |

 Solution control with automatic stop. Saves water and chemicals. Solution flow stops and starts upon brush activation. |
|
|
|

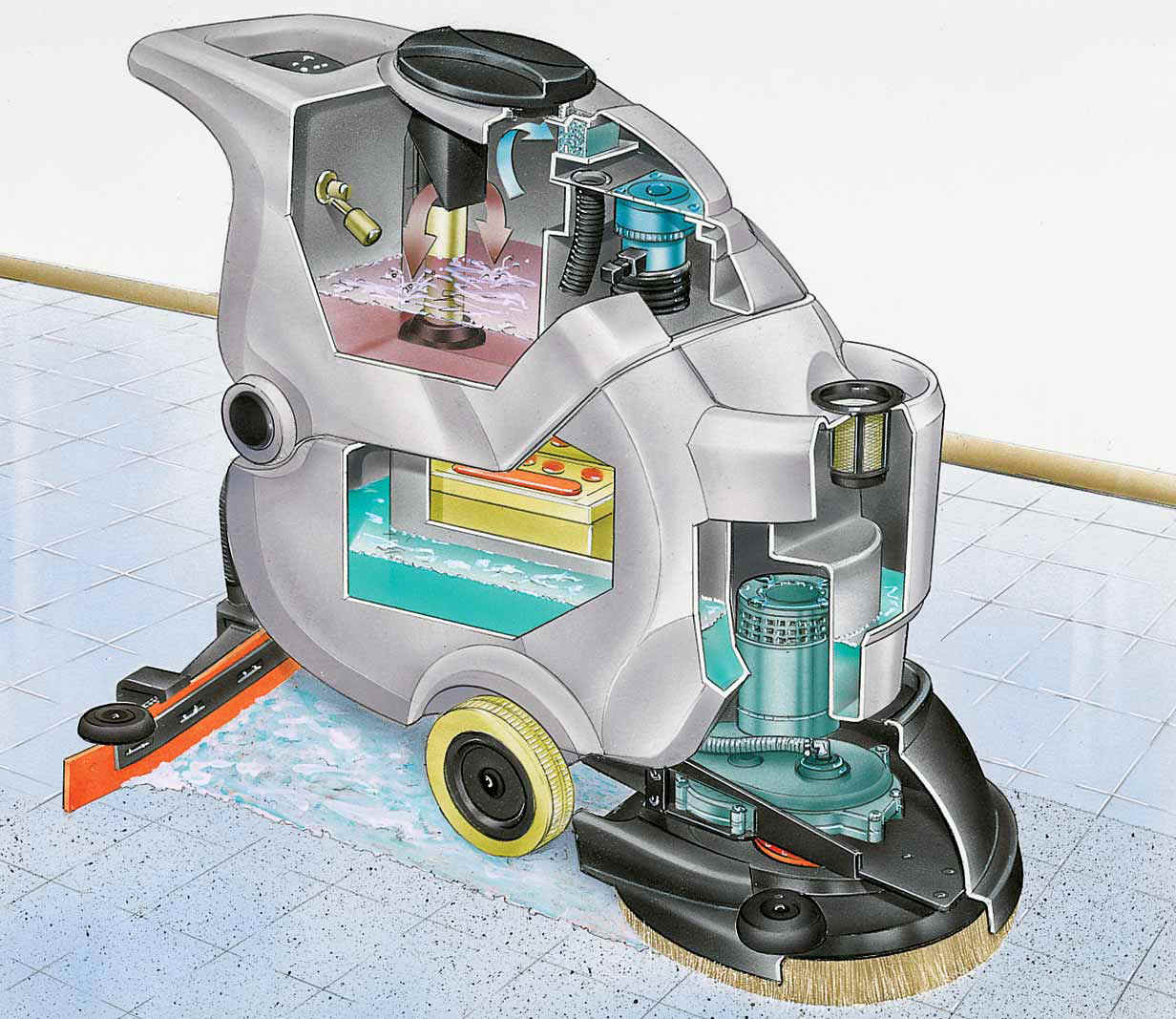

 Maximum protection for the vacuum motor (water level sensor) 1. The vacuum motor is mounted in the highest part of the machine and is protected by a filter and water level sensor. 2. When the dirty water tank is full, the left LED lights up and the vacuum motor shuts down. The right LED indicates when the cleaning solution has reached the reserve and there is enough solution for about two minutes. |

 Brush control with automatic delayed stop. Saves brush wear and protects the floor surface. Brush rotation stops (3 sec. delay on traction drive) and starts upon brush activation. |

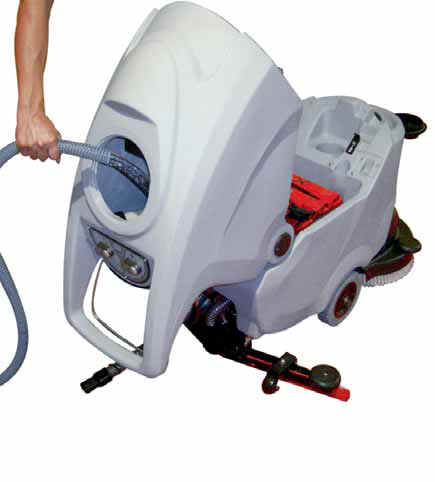

 Recovery tank can be tilted Easy to rinse and clean with smooth internal finishes. |
|
|
|
|
|
|
|
|
|
|
|
|
| SPECIFICATIONS: |
| Technical Data: |
BT50 |
| Drive System: |
Traction |
| Scrubbing Width: |
28"/500mm |
| Squeegee width: |
32"/815mm |
| Number of Brushes |
2 (disc) |
| Solution tank Capacity: |
19 Gal |
| Recovery tank capacity: |
20 Gal |
| Battery Power Supply: |
24V,105/145AH |
| Empty weight (w/o batt) |
208 lbs/95Kg |
| Length: |
48" |
| Width: |
30" |
| Height: |
38"/962 mm |
| Electro-Valve Solution Flow |
Yes |
| Electric Traction: |
Yes |
| Max Speed: |
2.8 mph/4.5kgh | |
| |
