Large solution capacity in a minimum external space |
 |
 |
Extensive running time, large battery compartment |
 |
Brush Control with delayed automatic stop. |
 |
3 solution distribution options:
• Standard
• Automatic
• Economy
|
|
|
|
MULTI SYSTEM USE |
| Traditional |
Or |

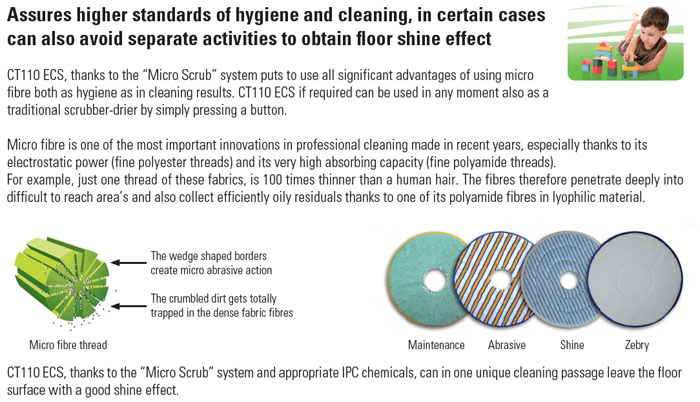

Micro Scrub |
 |
|
 |
| Micro fiber pads (600 rpm / 11.8 oz per minute) . |
|
Traditional brushes or pads (200 rpm / .7 – .8 gallons per minute) |
 |
|
 |
| Pad/brush pressure adjustment with led display. |
|
Spin on, spin off pad |
|
|
|
|
 |
 |
|
|
|
| High Performance |
Ergonomics user friendly |
Low Maintenance costs |
 |
CFS (Center Flow System) Solution distribution from brush center. |
 |
Great maneuverability due to optimum weigh distribution. |
 |
Inlet and outlet filters for maximum solution tank protection. |
 |
Pre-programmed work settings. |
 |
Great working visibility. |
 |
AFS (Anti Foam System) and shut off sensor protect vacuum. |
 |
Exclusive squeegee system assures high performance at low cost. |
 |
Automatic stop (by command release) in working mode. |
 |
Automatic squeegee lift in reverse . |
 |
High quality / high performance vacuum motor. |
 |
Designed to assure Minimum noise levels. |
 |
Spin-on spin-off brush/pad driver (single brush only). |
 |
SLS (Self Levelling System) automatic brush pressure control. |
 |
Easy to use control panel. |
 |
Squeegee blade can be used on 4 sides before replacement. |
 |
Recovery tank discharge hose at maximum height. |
 |
Battery level indicator. |
 |
Squeegee assembly and blade replacement without tools. |
 |
Recovery tank can be tilted for ease of cleaning. |
 |
On board charger can be easily installed now or later. |
 |
Easy access to internal compartments. |
|
|
 |
Flashing beacon. |
|
|
|
|
|
Durability |
|
|
 |
Tanks and surrounding body in high density polyethylene. |
 |
Oil bath reduction gear box. |
 |
Brush head designed to absorb harsh impact. |
 |
Squeegee system designed to absorb harsh impact. |
|
|
 |
Panel control switches protected against water and humidity. |
|
|
|
|
|
Exclusive squeegee system assures high performance
Incomparable drying results even on the most difficult surfaces due to a very unique design. |
Large tank capacity in minimum external space
29/32 gallon (110-115 liter) capacity makes this model very unique in its category. |
Save water and chemicals
STANDARD
Solution flow through basic adjustment
AUTOMATIC
Solution flow proportional upon machine speed
ECONOMY
Solution always at minimum adjustment
CHEM-DOSE (opt)
Automatic chemical dispensing system. |
|
|
|
Very comfortable riding position due to an adjustable steering wheel
1. The control panel is easy and intuitive to use and program.
2. When the recovery tank is full, the left LED lights up and the vacuum motor turns off. The right LED indicates when the solution tank has reached the reserve and there is enough solution for about two minutes of cleaning. |
Auto start and stop on all functions.
Brushes
Solution
Vacuum
Traction
All functions stop and start upon traction pedal activation. Avoids having to stop and
start the machine. |
Recovery and solution tank can be tilted to clean and maintain.
Easy to rinse and clean with smooth internal finishes. |
|
|
|
|
|
|
|
|
|
|
|
|
| SPECIFICATIONS: |
| Technical Data: |
BT85 |
| Drive System: |
Traction |
| Scrubbing Width: |
32"/700mm |
| Squeegee width: |
40"/1010mm |
| Number of Brushes |
2 (disc) |
| Solution tank Capacity: |
29 Gal/110 Ltr |
| Recovery tank capacity: |
32 Gal/120 Ltr |
| Battery Power Supply: |
24V,105/145AH |
| Empty weight (w/o batt) |
508 lbs/231 Kg |
| Length: |
49"/1230mm |
| Width: |
34"/870mm |
| Height: |
50"/1270 mm |
| Max Speed: |
3.9mph/6.5kmh | |
| | |
