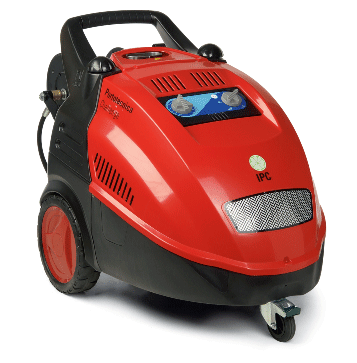

Challenge 1500 IPC Eagle, Hot Water Pressure Washer, Electric
• 1500 PSI, 2.1 GPM
• 250 F Max temp. (144 F Heat Rise)
• Professional Plunger Pump
• Brass Head Ceramic Plungers
• Delayed Total Stop
• Rated 8 hours per day usage
• Built-in chemical tank/dispenser
• Anti-Scale System
• 115V, 20Amp
CHALLENGE new compact extremely maneuverable water cleaners, pumps with brass head, ceramics piston for a long working life.
 |

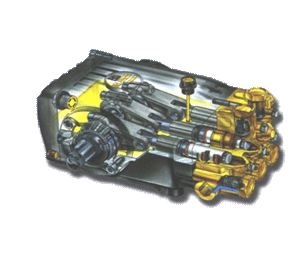

Heavy Duty Pumps, Ceramic plungers, and brass heads for professional performance and long life. |
|
 |
Heavy Duty Electric Motors |
 |
Maintenance free burner head, treated coils, external components in stainless |
 |
Delayed Total Stop (TSR) Controls: Stops motor 30 seconds after the pressure gun is turned off then starts it up again when the gun is turned on, extending the working life of components and saving energy. |
Highlights
Remote controlled SAFETY - STOP (ST) shuts the machine down after three by - passes or definitively in the event of leaks in the hydraulic circuit. Two - pole asynchrony, 2 poles (2800 rpm), maintenance free. In model DS 138 M and DS 1310 T the motor is 1400 rpm. This improves the working life of the mechanical components. TSC intelligent control system: temporality shuts the machine down after 15" of inactivity then starts it up again when the water gun is turned on or turns it off definitively in the event of leaks in the hydraulic circuit or no water. High efficiency boiler with steel coil. The boiler is made from painted steel in ST models and stainless in DS models. Decaling device with flow adjustable according to water hardness. (DS models). Crank - type H.P. pump: high efficiency; mechanical components with low working temperature; low noise; brass head: long working life; ceramic pistons: high resistant to wear. In ST model, the low pressure detergent delivery is controlled from the lance. In DS models, detergent is delivered at high pressure. Pressure and steam phases regulation knob enabling pressure to be adapted to the various cleaning needs. (DS models). 1) Adjustable maximum temperature thermostat. Modulates and limits the maximum water temperature and guarantees operator safety and the reliability of the components. 2) Safety thermostat. Turns off the burner if there is a fault in the hydraulic circuit. 3) Automatic pressure switch. Controls combustion in relation to operation of the H.P. pump. 4) Safety valve to limit overpressure. Protects the hydraulic circuit and above all the safety of the operator in the event of accidental overpressure.
| SPECIFICATIONS: |
| Working Pressure: |
450-1300 Psi |
| Flow Rate: |
1.2-2.2 GPM |
| Main Electrical Supply: |
120V-60Hz |
| Absorbed Power: |
2.0 Hp |
| Amps: |
20 |
| Remote Control: |
DS |
| Motor-Pump Coupling: |
Direct |
| Motor: |
2 HP |
| Speed: |
1,750 rpm |
| Cooling: |
Air Cooled |
| Pump: |
Plunger |
| Pump Head: |
brass |
| Pistons: |
Ceramic |
| Water inlet/outlet max. temp. |
250° F |
| Heat Rise |
144° F |
| H.P. Hose |
50 ft. |
| Turbo |
Optional |
| Hose Reel |
Optional |
| Detergent Tank: |
3.2 Gal |
| Fuel Tank: |
2.11 Gal |
| Anti-scale Tank: |
0.53 Gal |
| Weight: |
190 lbs. |
| Length: |
45" |
| Width: |
30" |
| Height: |
41" | |
| |
Click here for full product specifications
